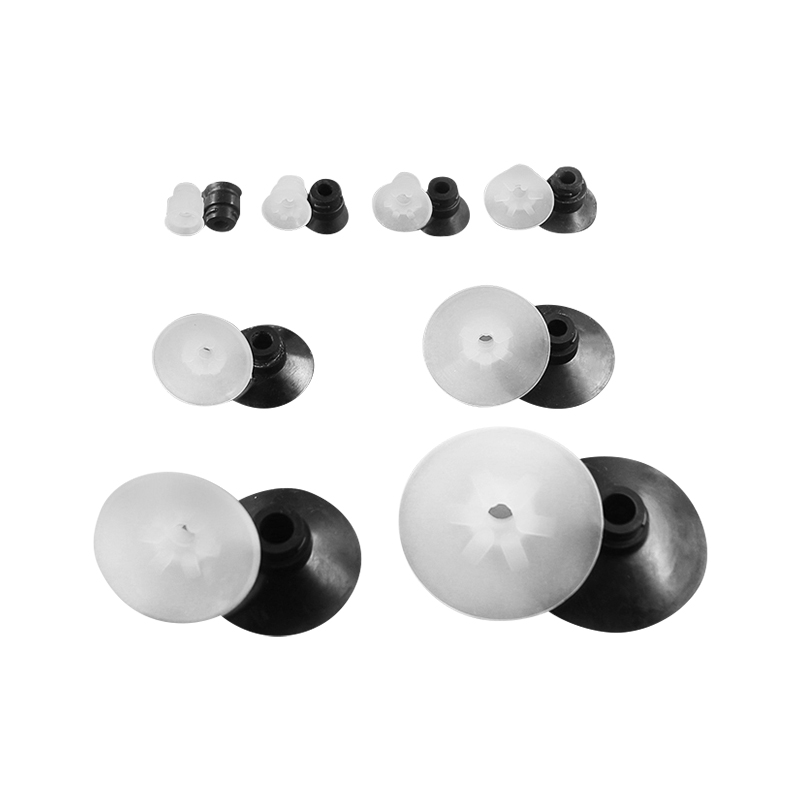

SMC Series ZP-C Flat Ribbed Silicone Transparent Vacuum Suction Cup Robot Fixture Accessories Pneumatic Tools
YHZP10CS
YHZP10CN
YHZP13CS
YHZP13CN
YHZP16CS
YHZP16CN
YHZP20CS
YHZP20CN
YHZP25CS
YHZP25CN
YHZP32CS
YHZP32CN
YHZP40CS
YHZP40CN
YHZP50CS
YHZP50CN

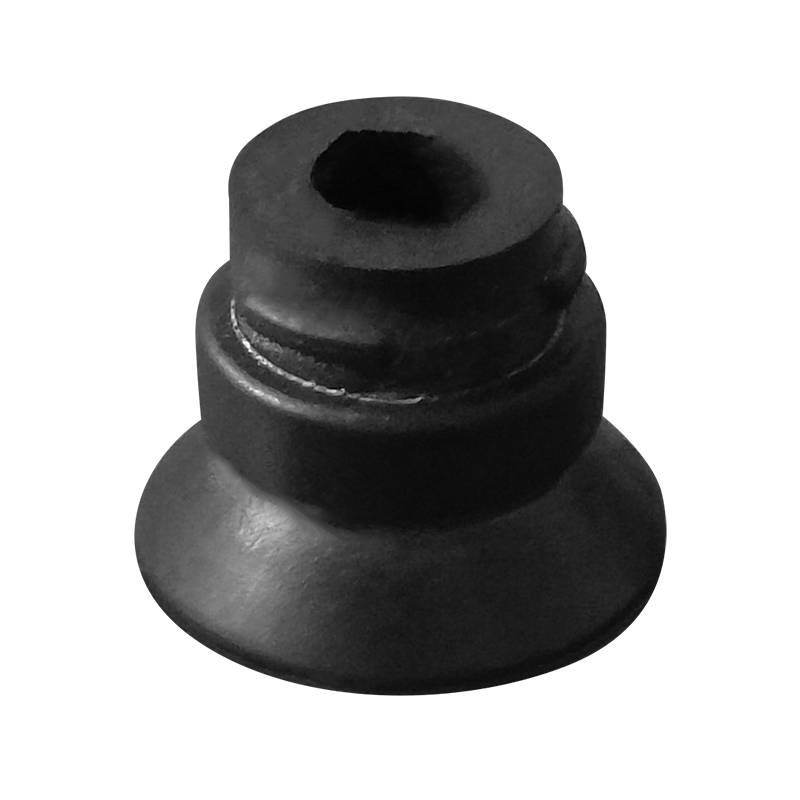

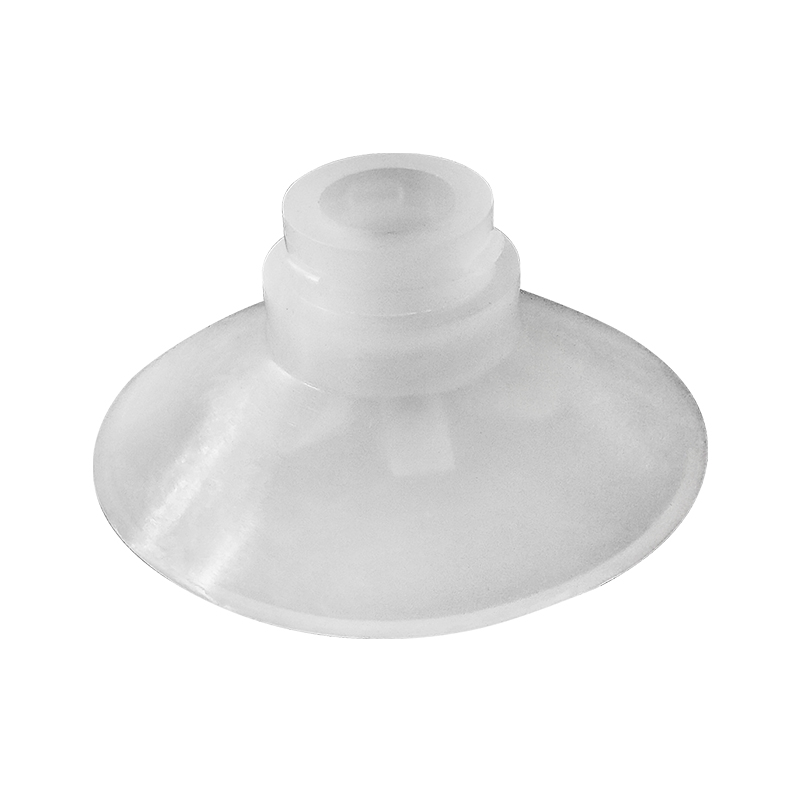

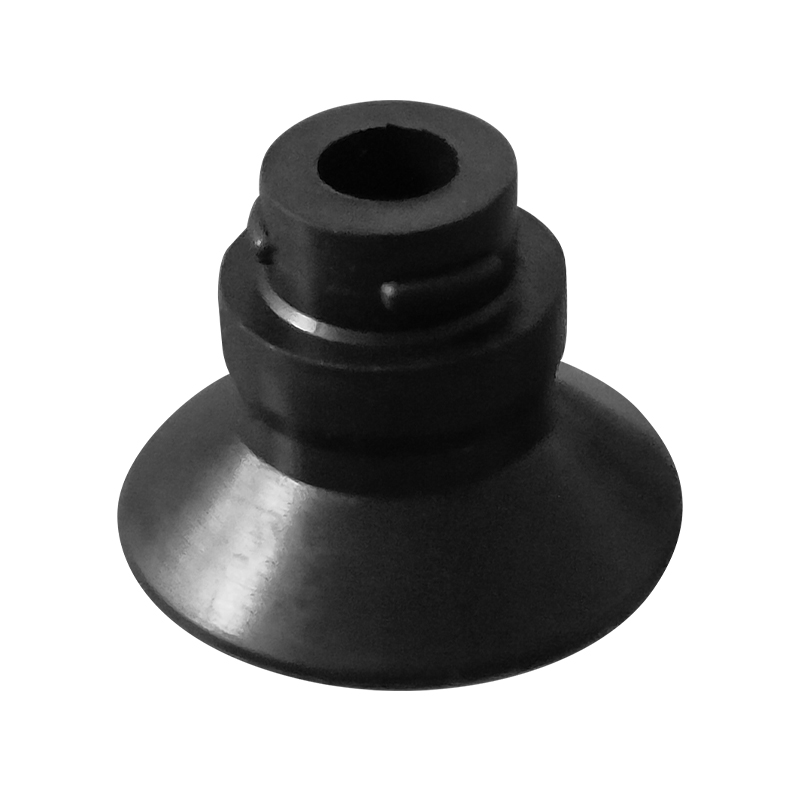

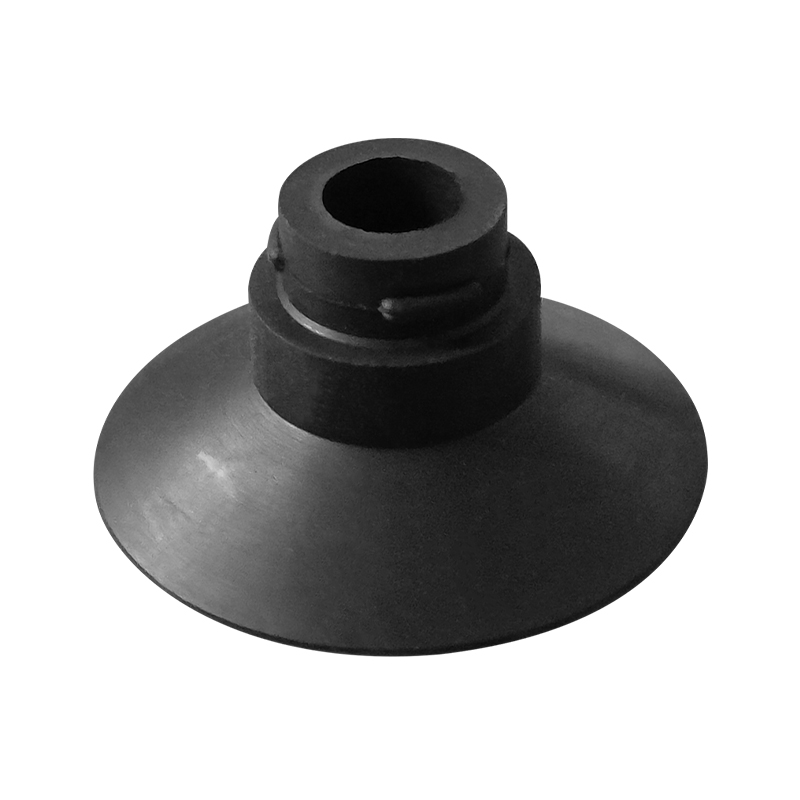

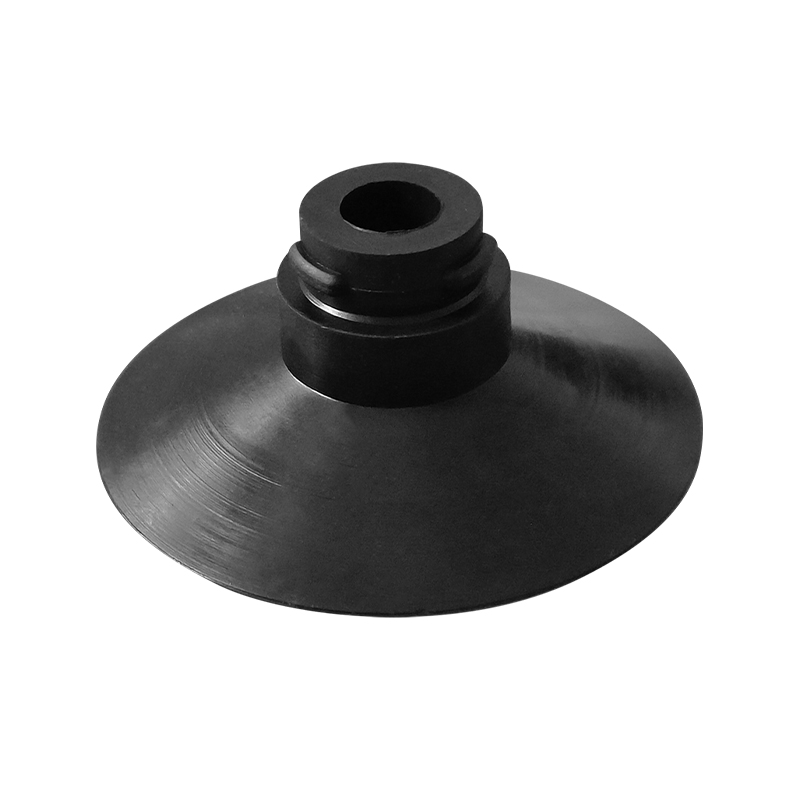

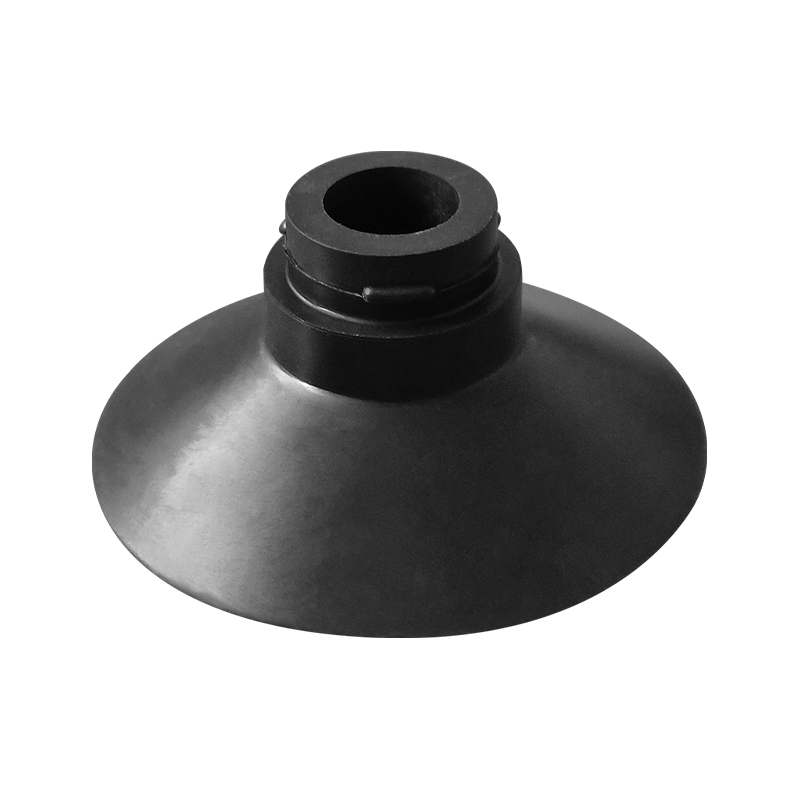

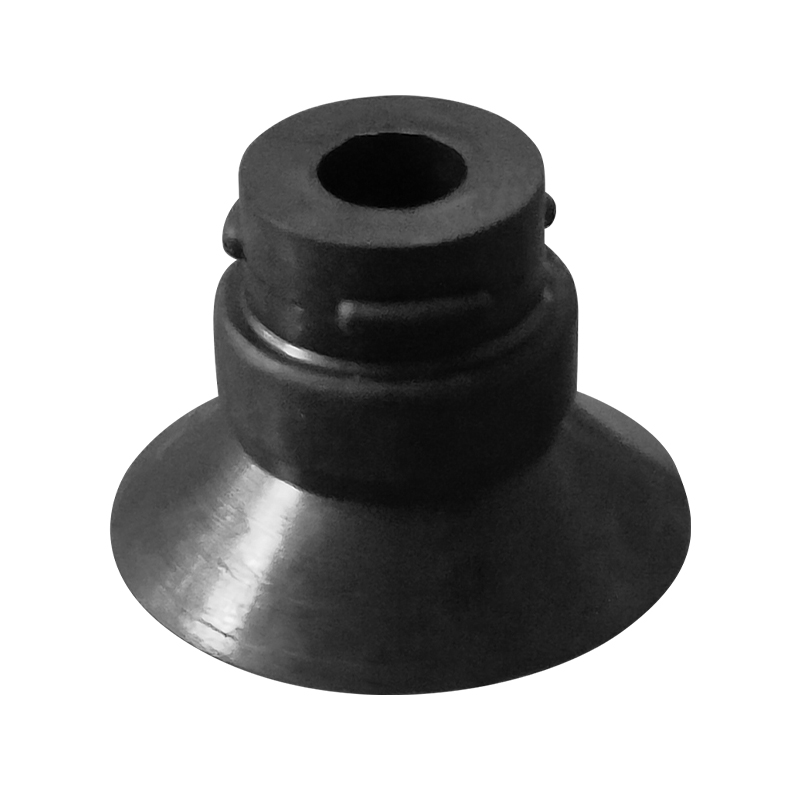

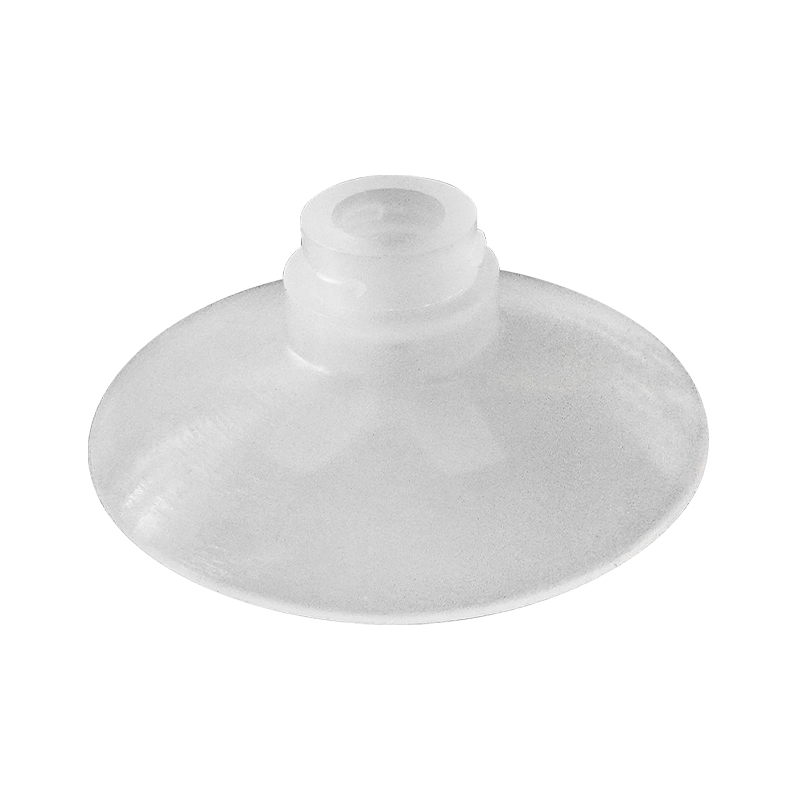

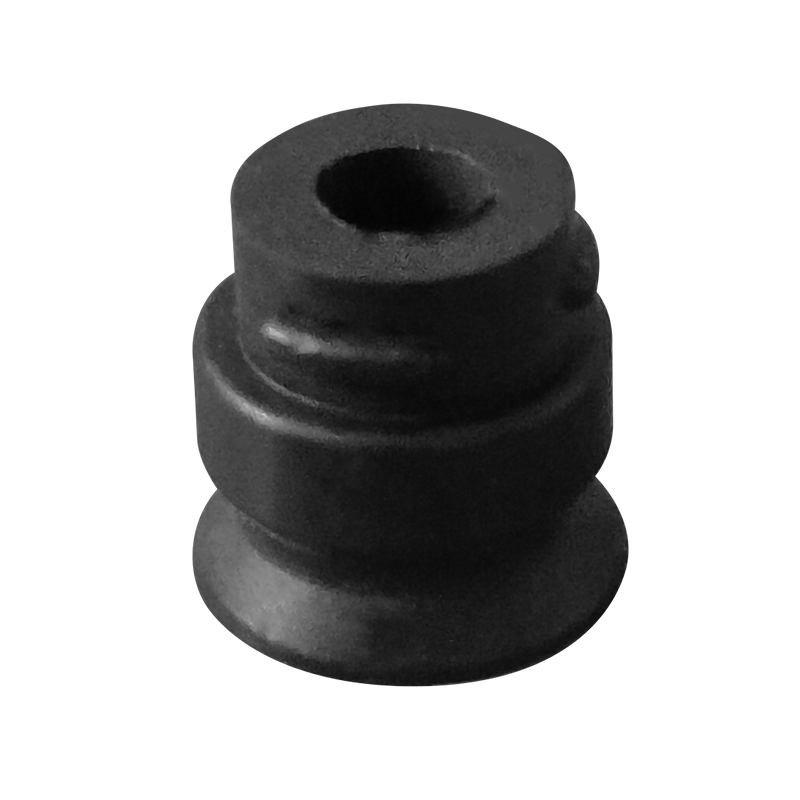

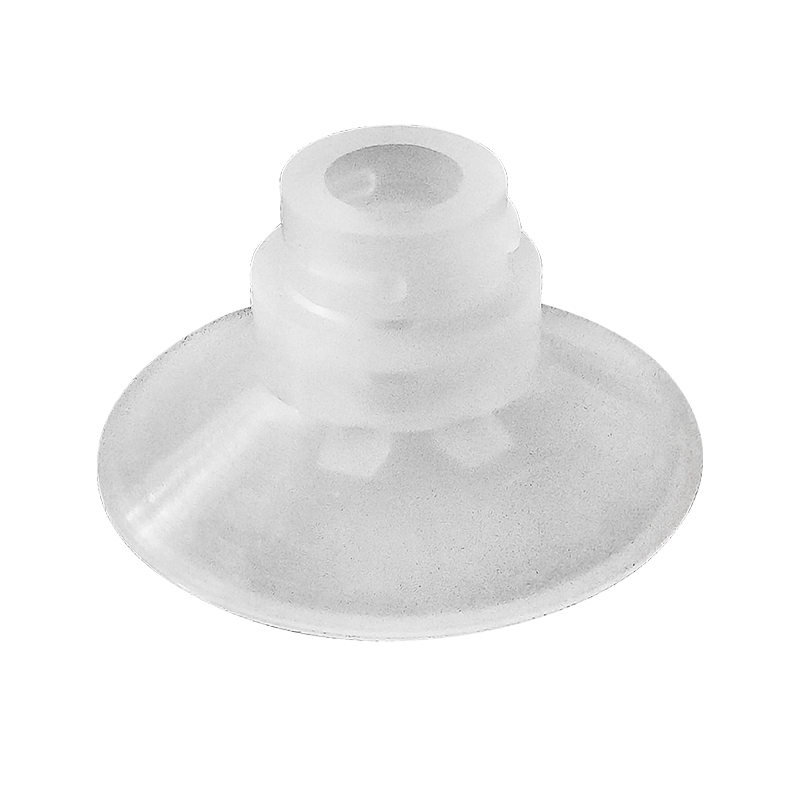

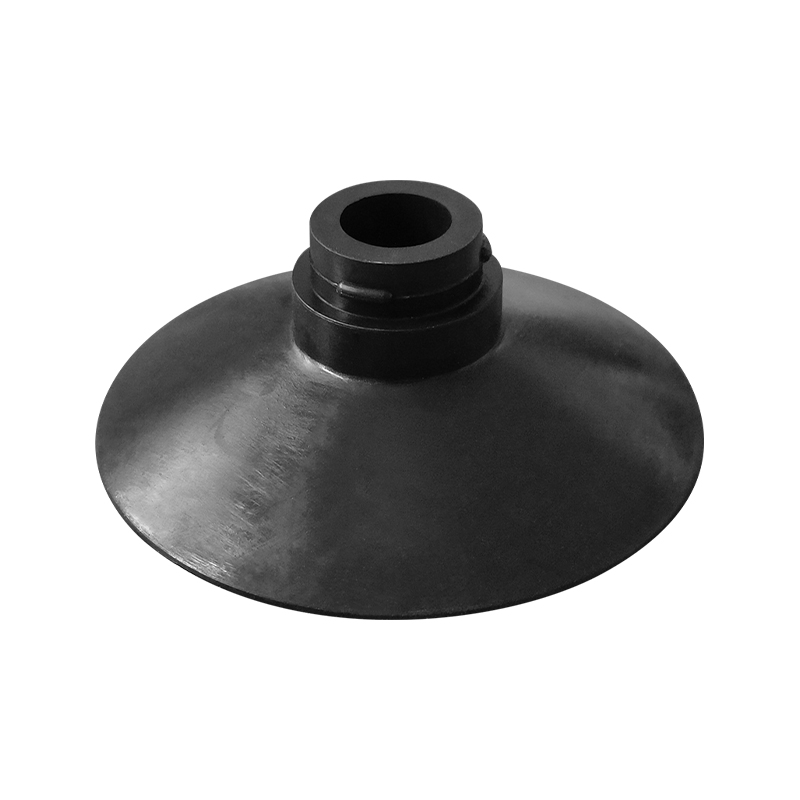

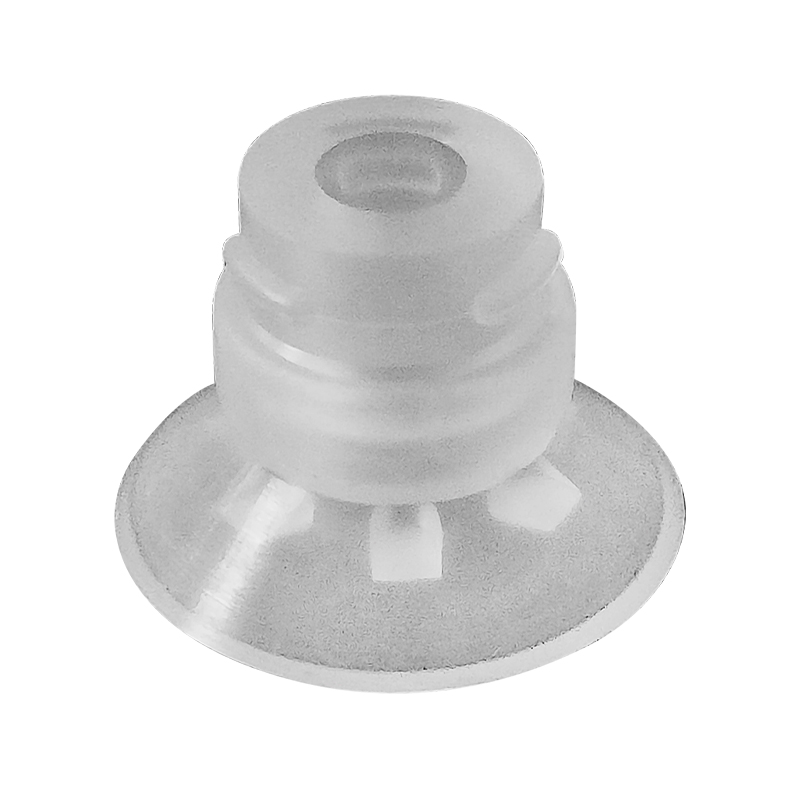

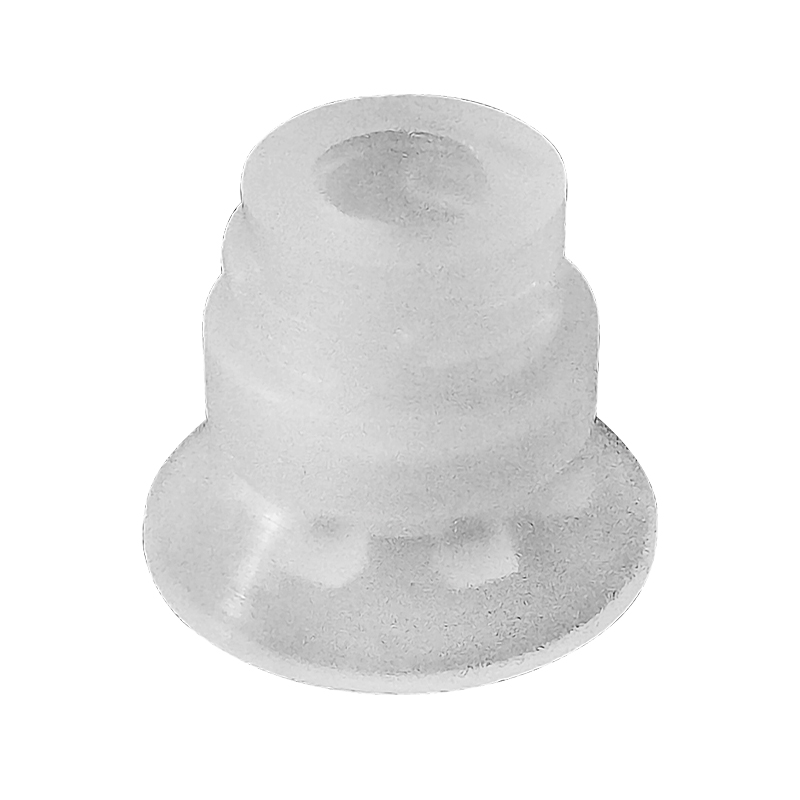

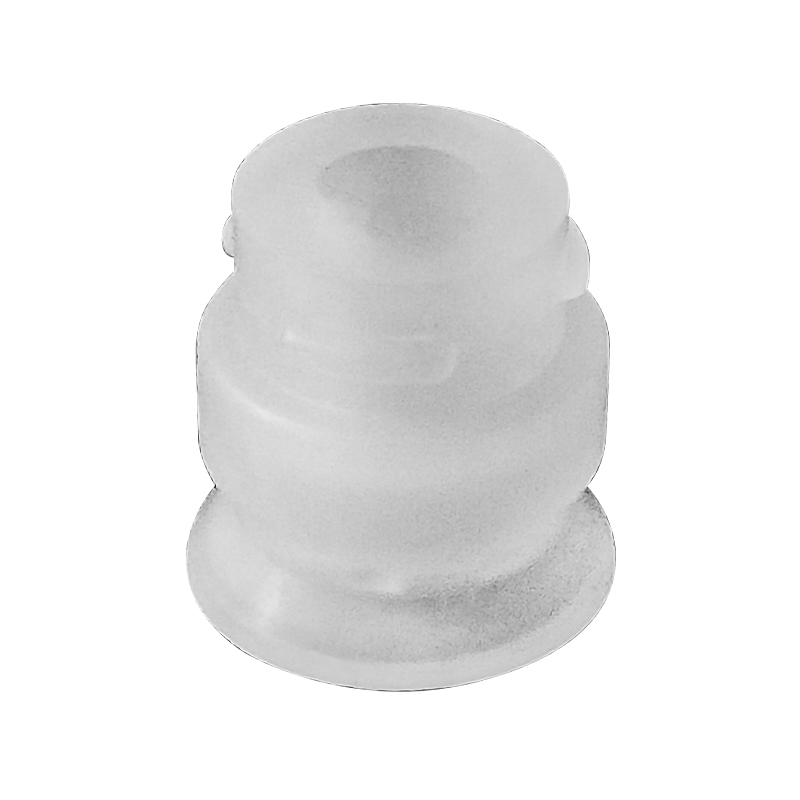

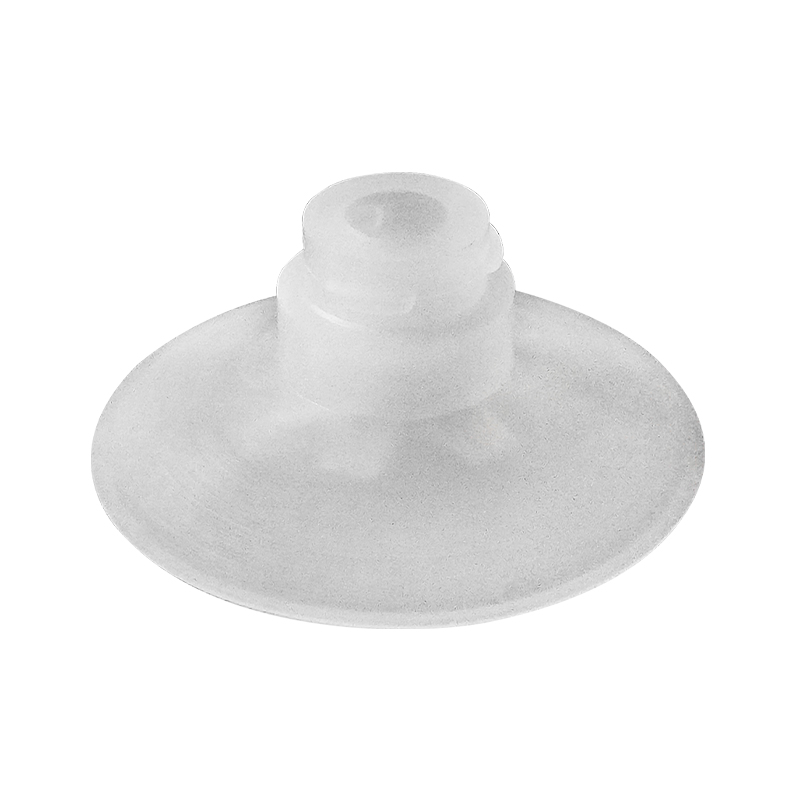

Product material: S-white silicone N-black nitrile rubber

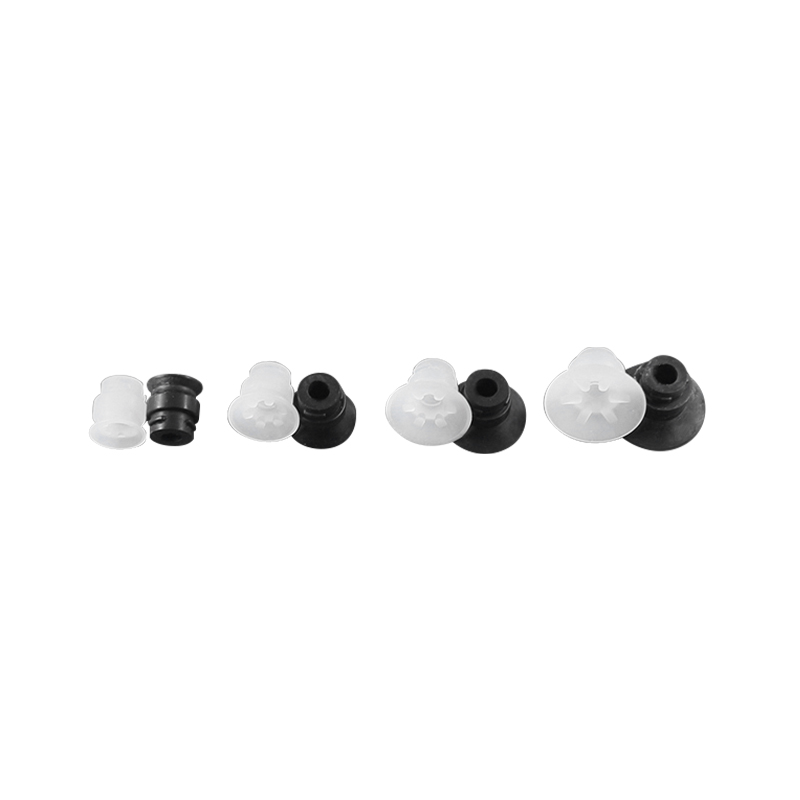

Product model: ZP-10/13/16/20/25/32/40/50
Disc diameter: 10-50MM, can meet the adsorption needs of workpieces of different sizes

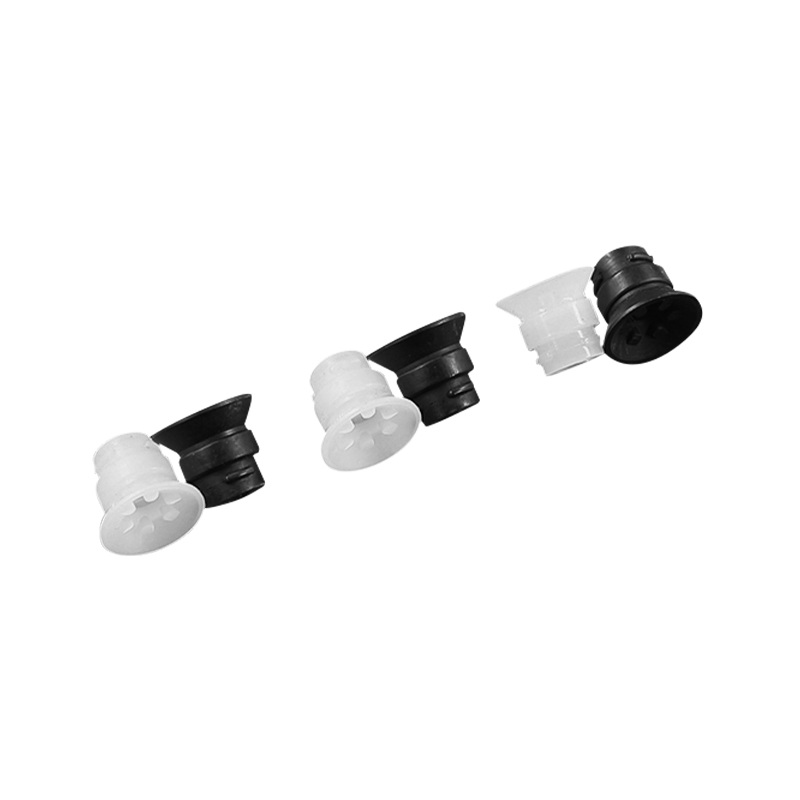

Color: white, black

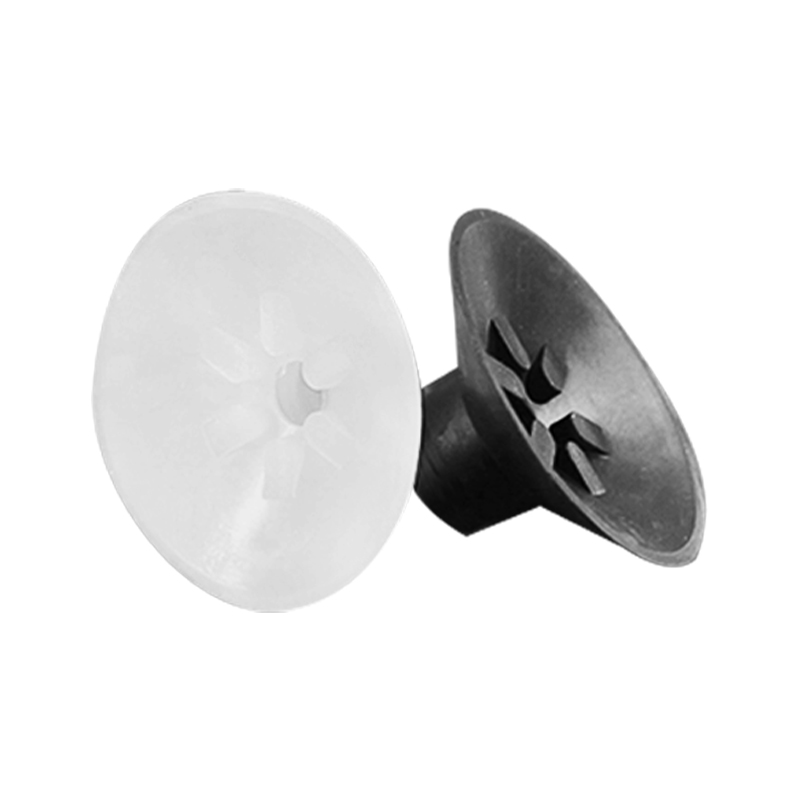

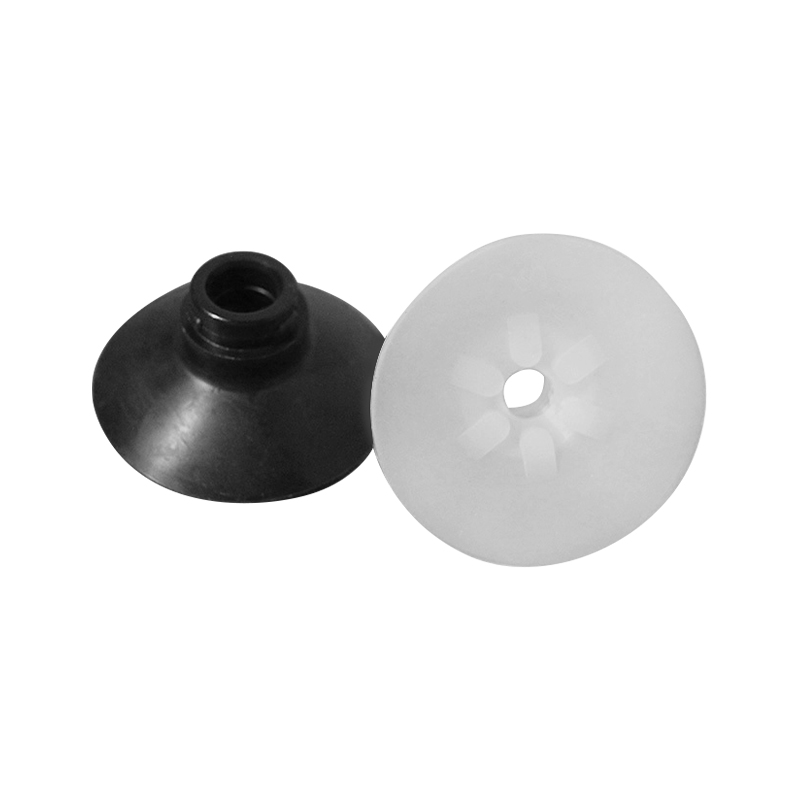

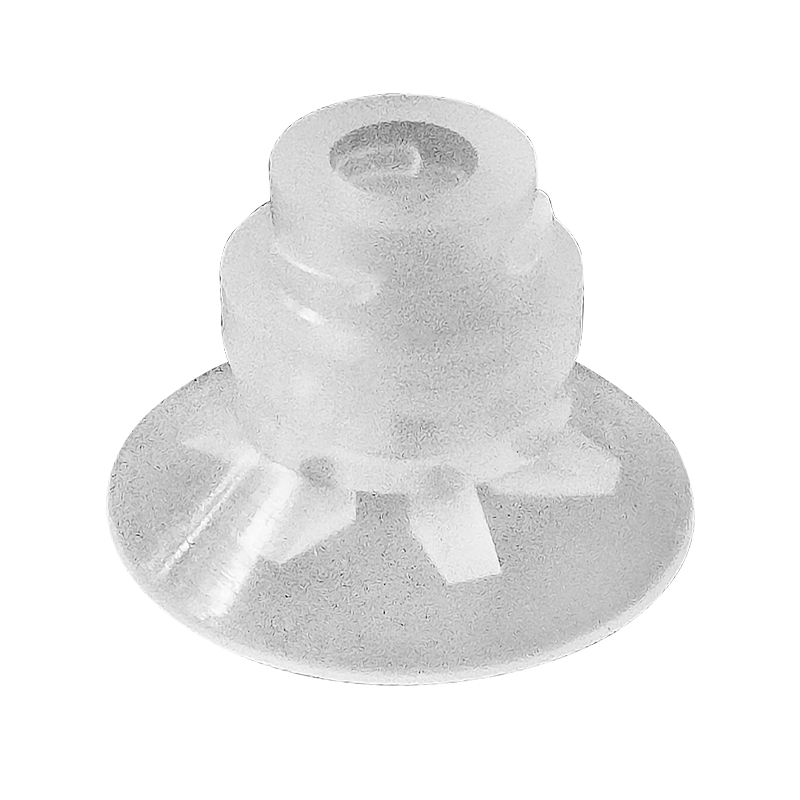

It is a parallel ribbed design, suitable for the adsorption needs of flat objects.
Installation method and connection flexibility:

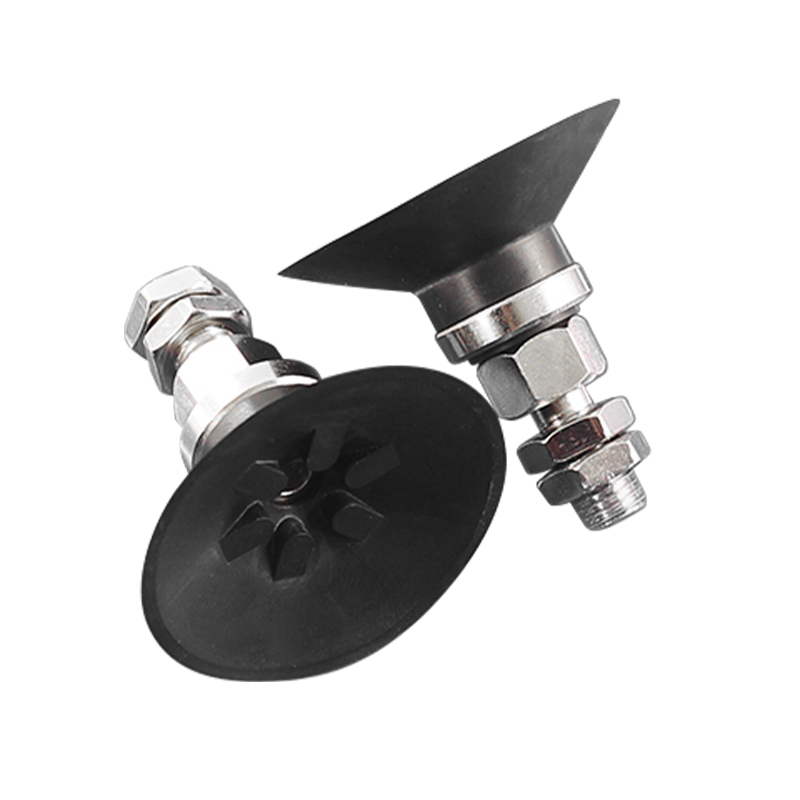

Supports external thread and internal thread installation methods, and is compatible with various installation interfaces such as quick-change connectors and barbed connectors, which is convenient for integration with automation equipment.
Provides a variety of vacuum lead-out directions (longitudinal or horizontal) and a variety of vacuum lead-out options (external thread, internal thread, quick-change connector, etc.), which enhances the flexibility of installation.
Technical parameters:
The minimum working pressure can reach -0.08MPa, and the piston speed range is 50 to 200mm/s
