Ⅰ. Product type
1. Model without detection, without detection line
2. Model with detection, including detection line

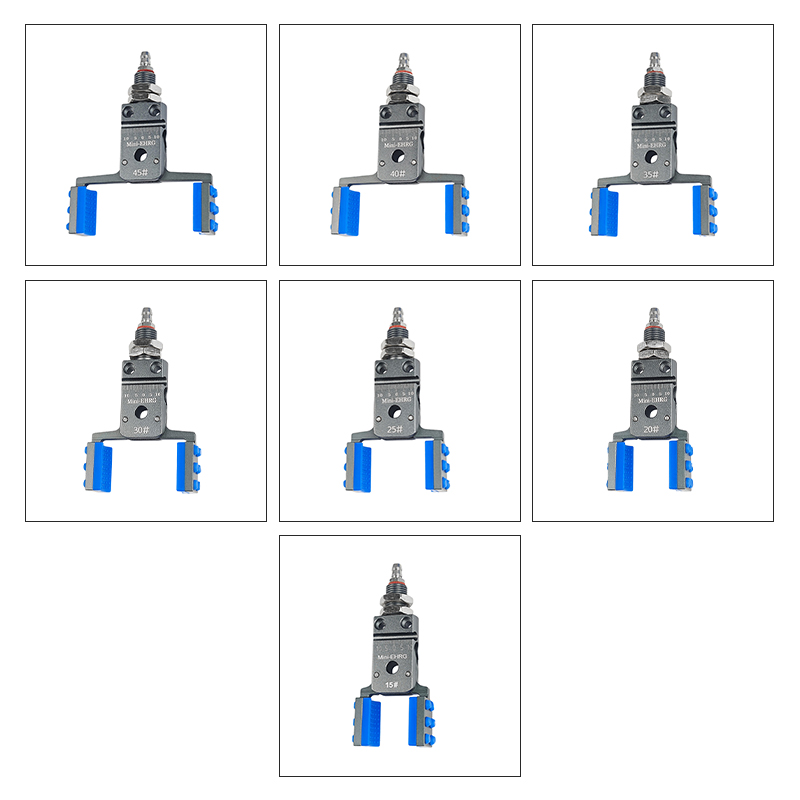

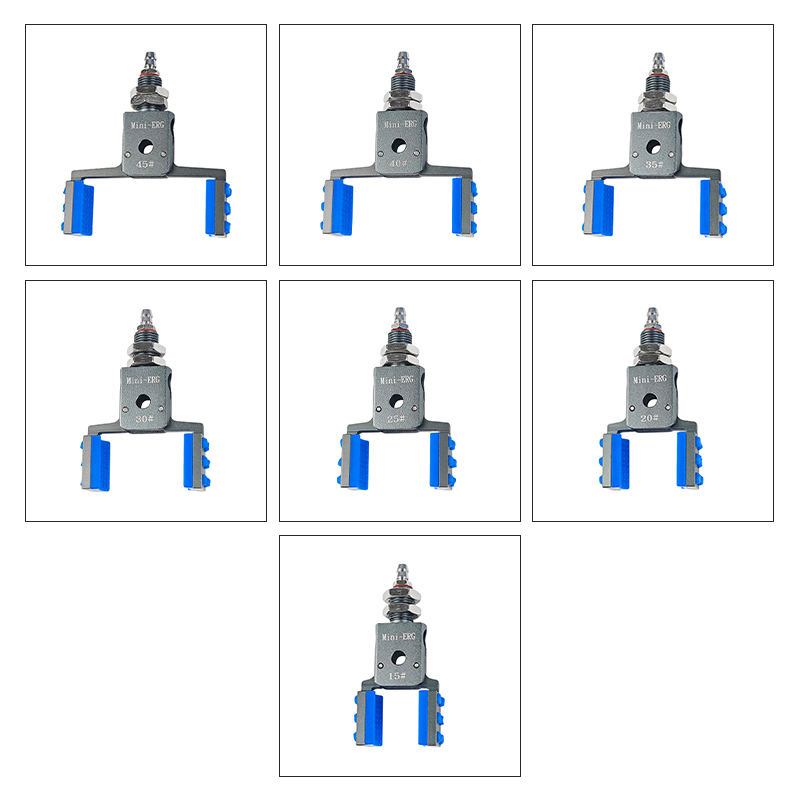

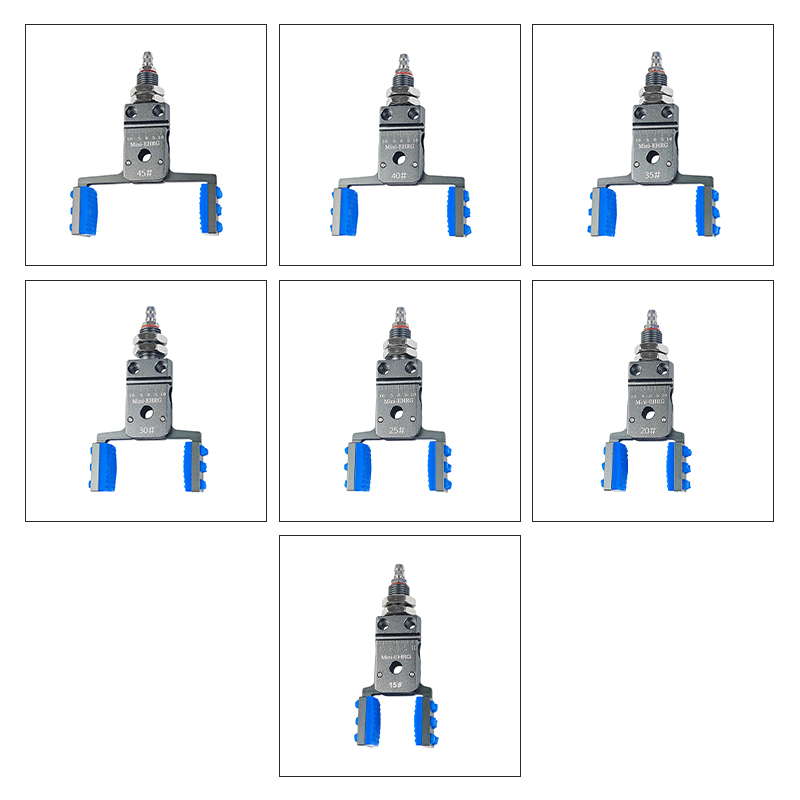

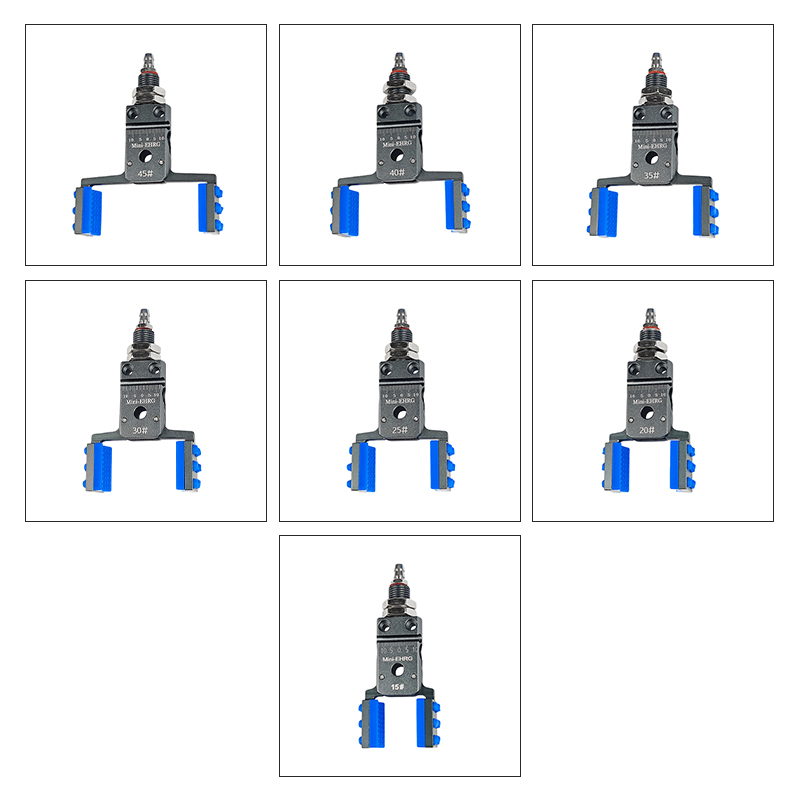

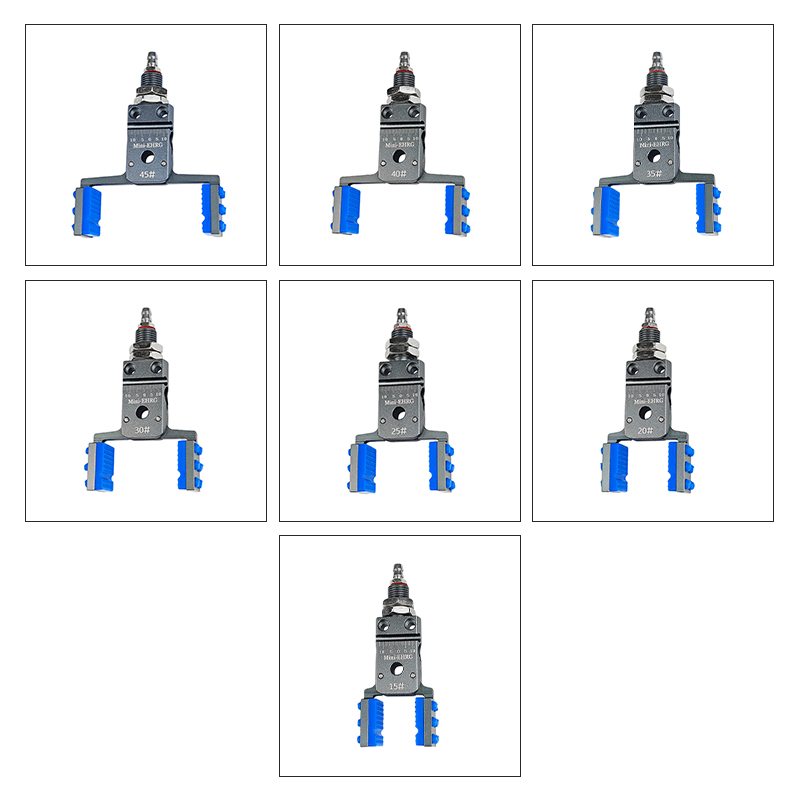

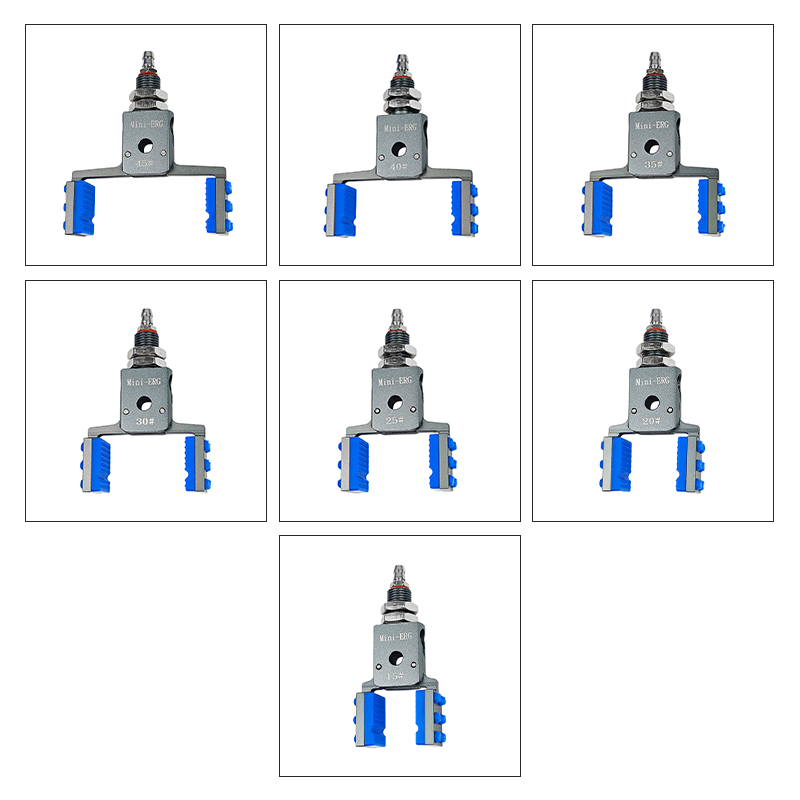

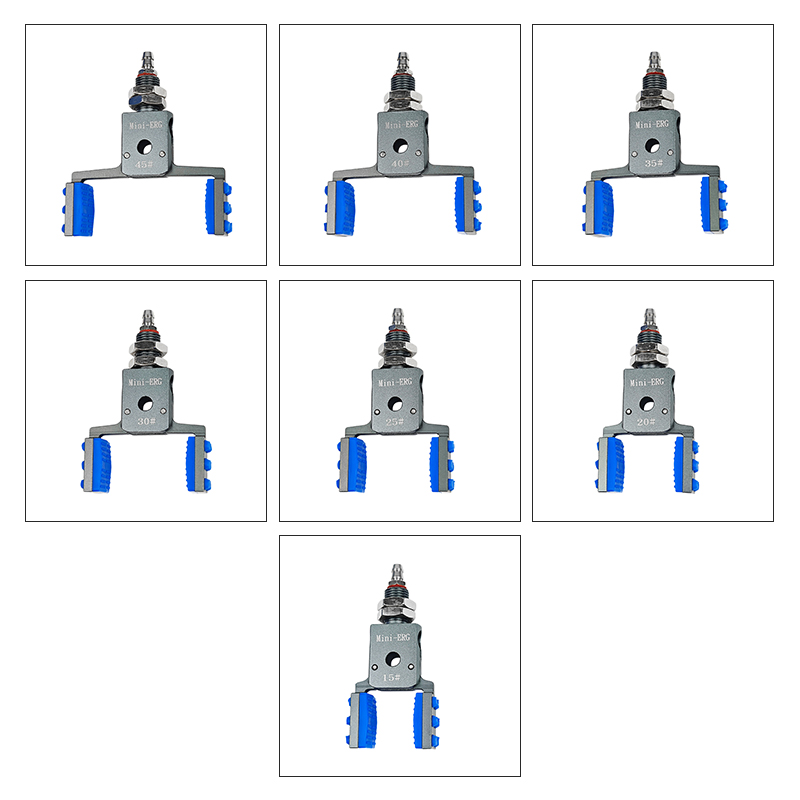

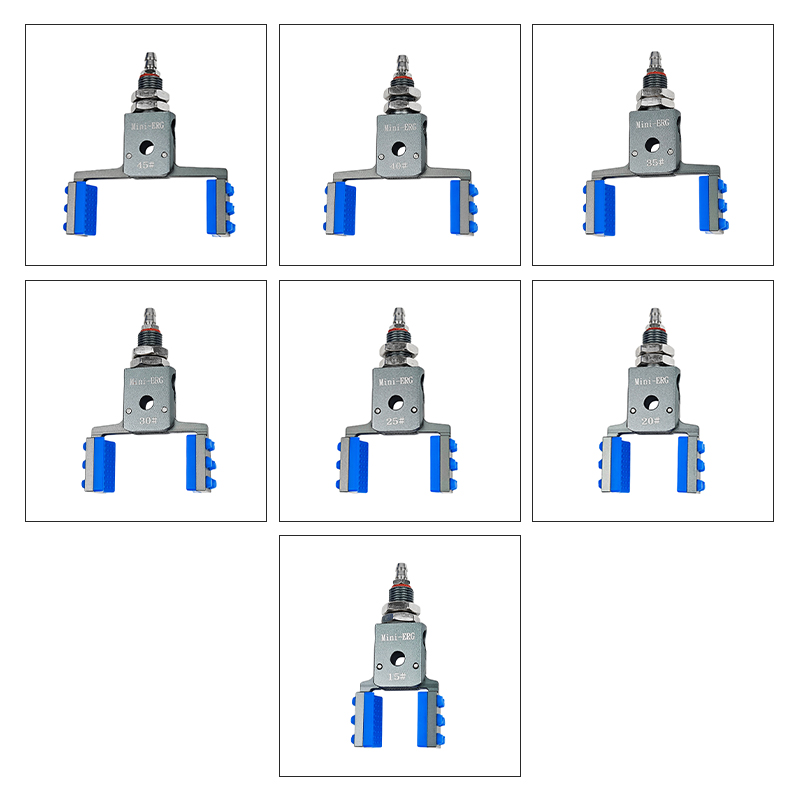

Ⅱ. Product clamping range: 5-45mm
Ⅲ. Clamp type:
1. Model without magnet:

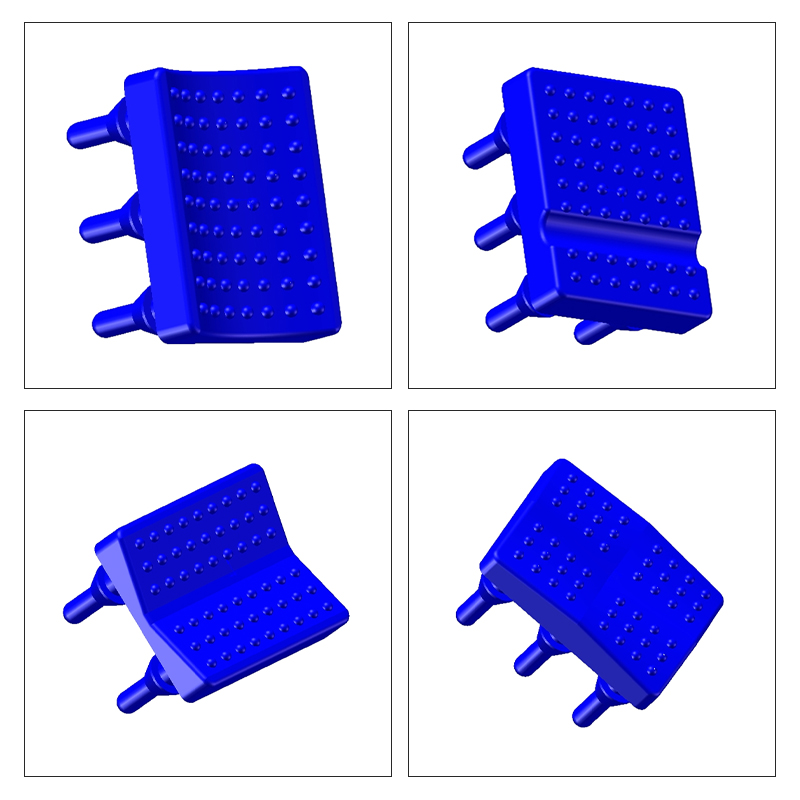

① Anti-slip pad-V surface
② Anti-slip pad-Flat surface with groove
③ Vertical-arc surface
④ Horizontal-arc surface
⑤ Irregular plane
2. Model with magnet
① Anti-slip pad-V surface
② Flat surface with groove
③ Vertical arc surface
④ Horizontal arc surface
⑤ Irregular plane
IV. Functional features
The clamp has a widened design, suitable for injection nozzles of different sizes, and supports pneumatic operation, which can achieve fast and accurate clamping and release actions. In addition, some models are also equipped with a magnetic detection function for sensing the position or material of the workpiece.
V. Material and design
Made of lightweight materials such as silicone, stainless steel, etc. to ensure durability and safety. All models are equipped with anti-slip rubber sleeves to avoid damage to the workpiece during clamping.
