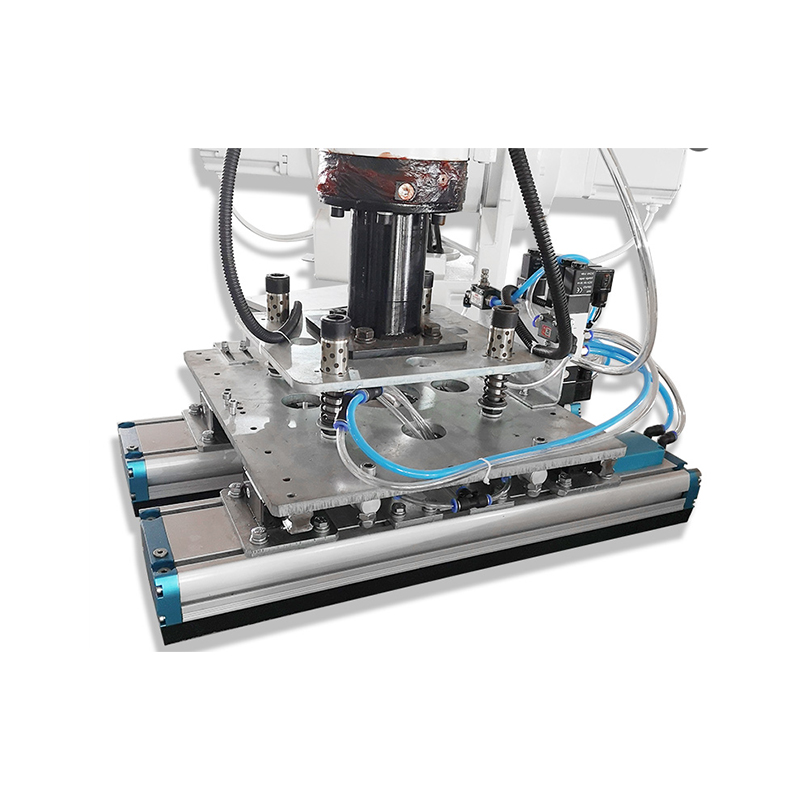

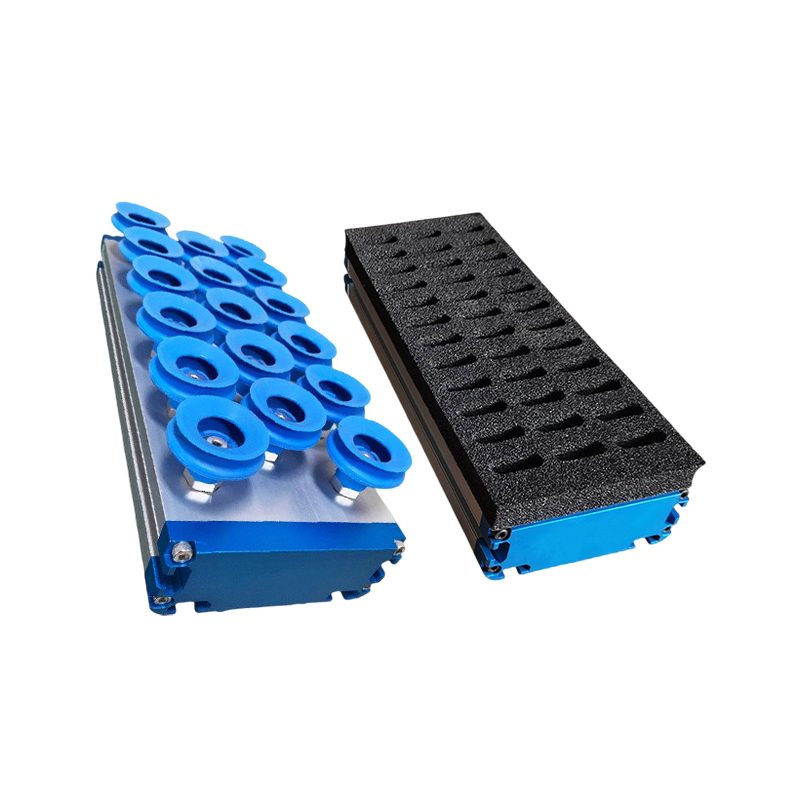

Robot Industrial Integrated Vacuum Sponge Suction Cup Palletizing Gripper With Check Valve Sorting Pneumatic Strong Adsorption

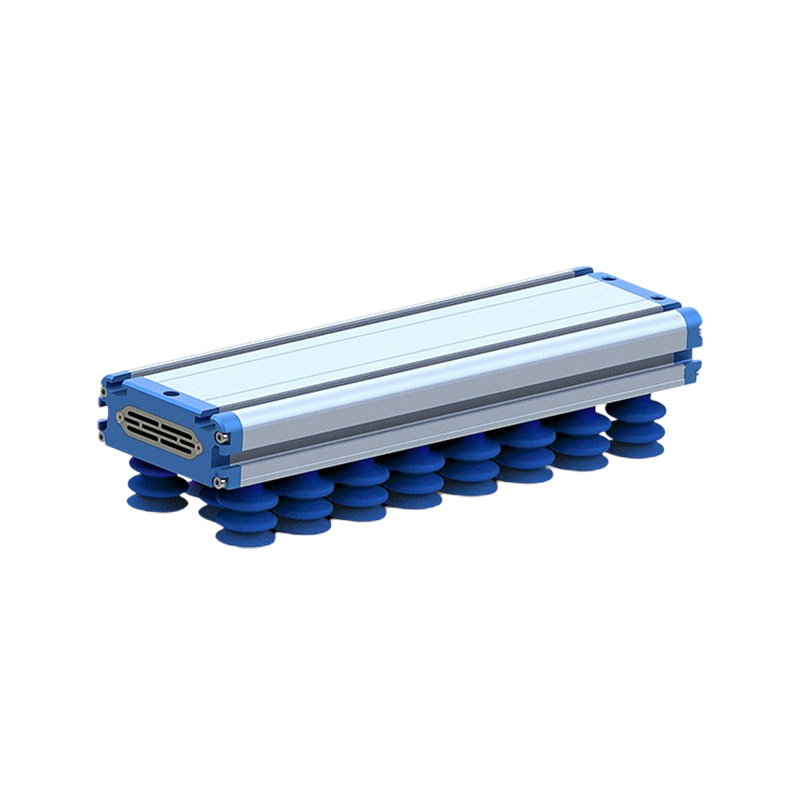

(PVX Suction Cup Type)

Product Specifications

E(mm)

D(mm)

Number of vacuum tubes

Product Weight (Kg)

Suction Cup Coding

PVX-130x1000-P-30-V

1034

32

6 roots

7.6

P30-S-3

PVX-130×1000-P-40-V

1034

42

6 roots

8.3

P40-S-3

PVX-130x1000-P-60-V

1034

50

6 roots

9.1

P60-S-3

PVX-130×1250-P-30-V

1284

32

7 roots

8.7

P30-S-3

PVX-130X1250-P-40-V

1284

42

7 roots

9.5

P40-S-3

PVX-130x1250-P-60-V

1284

50

7 roots

10.5

P60-S-3

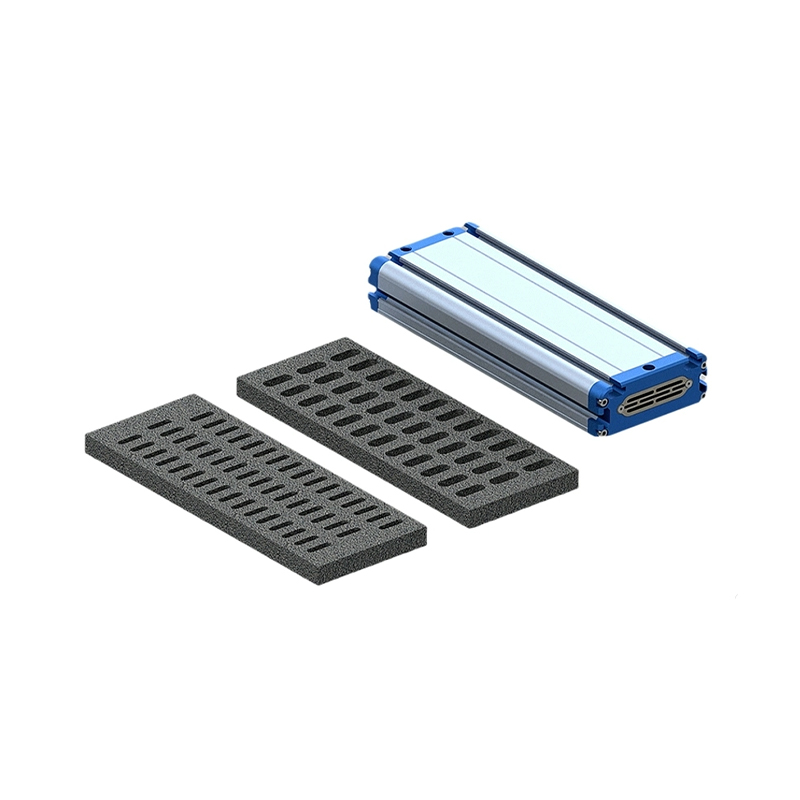

Product Specifications

A(mm)

Number of vacuum tubes

Product Net Weight(Kg)

Sponge Coding

PVX-130×300-N-*3R-V

334

2 roots

2.9

N20-※3R-334

PVX-130×300-N-5R-V

334

2 roots

2.9

N20-5R-334

PVX-130×400-N-*3R-V

434

2 roots

3.3

N20-※3R-434

PVX-130×400-N-5R-V

434

2 roots

3.3

N20-5R-434

PVX-130×600-N-*3R-V

634

3 roots

4.5

N20-※3R-634

PVX-130×600-N-5R-V

634

3 roots

4.5

N20-5R-634

PVX-130×800-N-*3R-V

834

4 roots

5.6

N20-※3R-834

PVX-130×800-N-5R-V

834

4 roots

5.6

N20-5R-834

Note: 1. The * in the table represents three ways of arranging the sponge holes: three rows of holes are type A and type B, and five rows of holes are type C. This needs to be clarified when ordering products.

2. The number after the sponge code represents the thickness of the sponge. For example, N20-A3R-334 means the sponge thickness is 20. For example, N10/10-A3R-334 means the sponge thickness is composed of two 10mm sponges with a filter in the middle. 3. In actual ordering, the total length of the sponge is generally 2-5mm shorter than the actual length.
