YH Robot Vacuum Suction Cup PCB Line Circuit Board Dedicated Hollow Workpiece Automation Pneumatic Integrated Matrix Check Valve

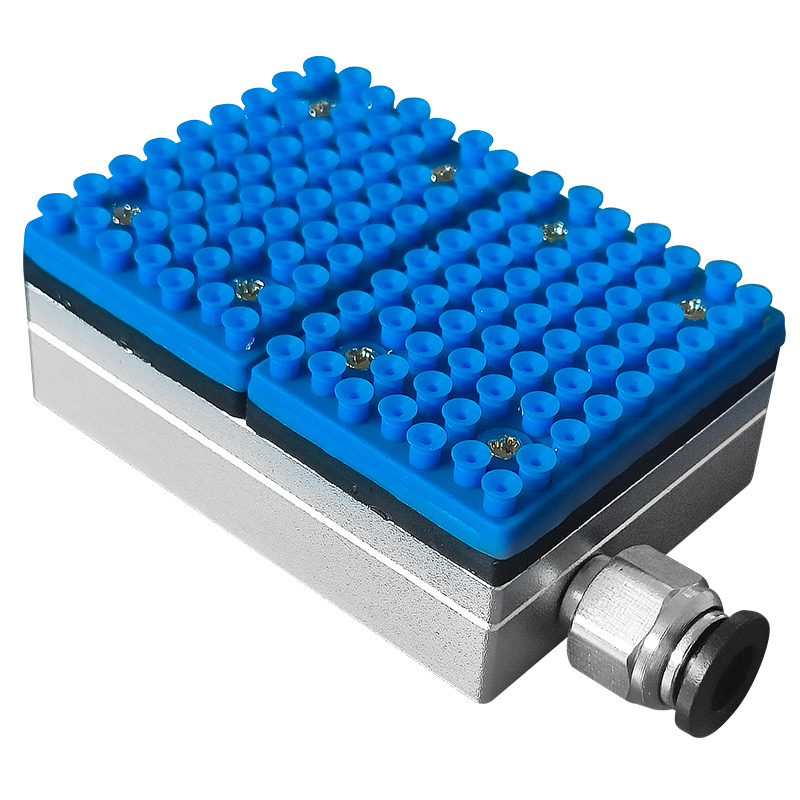

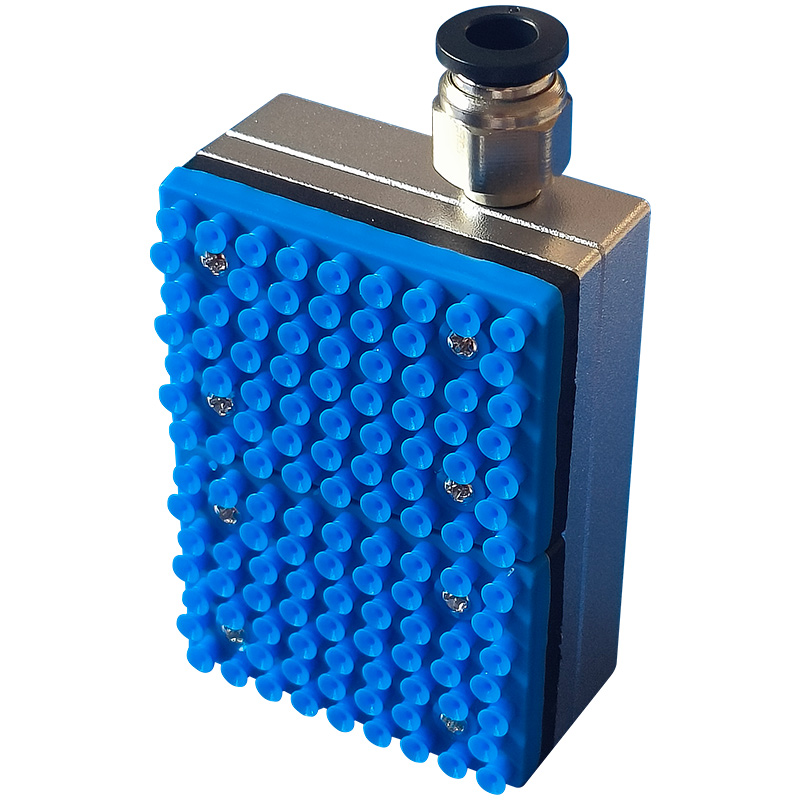

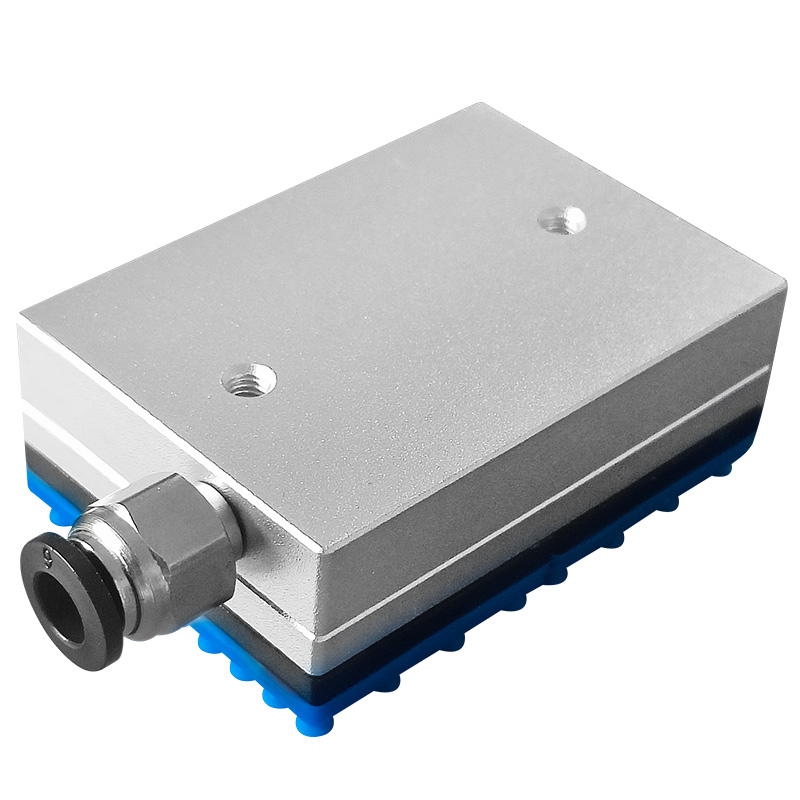

Integrated suction cup 60*42+ cylinder base
Material: aluminum, silicone
Color: white, black, blue
Use: install the joint for ventilation
Temperature: below 150 degrees Celsius
Scope of use: industrial robots, manipulators and other automation equipment
Service life: 100w+ times
Hardness: 50-55°
Working principle:
The straight-through quick-plug air nozzle is connected to the vacuum hole in the vacuum adsorption area, and air is sucked outward. The internal aluminum ball transition diversion mechanism is used to disperse the air pressure input, and the matrix holes on the two sets of vacuum suction cups are adsorbed, so that each small hole has uniform suction, which is converted into a 60*42mm adsorption surface for adsorption of the product; and the adsorption area can be increased by combining and using.
Product performance, safety specifications, and scope of application:
1. The product mainly uses vacuum adsorption to transfer the product working environment. A single group of work can absorb products with a flat adsorption surface within 2.5kg
2. The adsorption operation can also be completed if there are small holes, small depressions, avoidance areas, etc. on the adsorption surface
3. Before work, an adsorption simulation test should be performed to confirm that the state is maintained after adsorption to avoid losses caused by the adsorbed products falling during transportation
4. Transfer of PCB circuit boards in the electronic production industry, production lines, feeding of machine equipment products, taking out parts for injection molding production, stamping of small sheet metal parts for process change production, packaging adsorption and boxing operations
